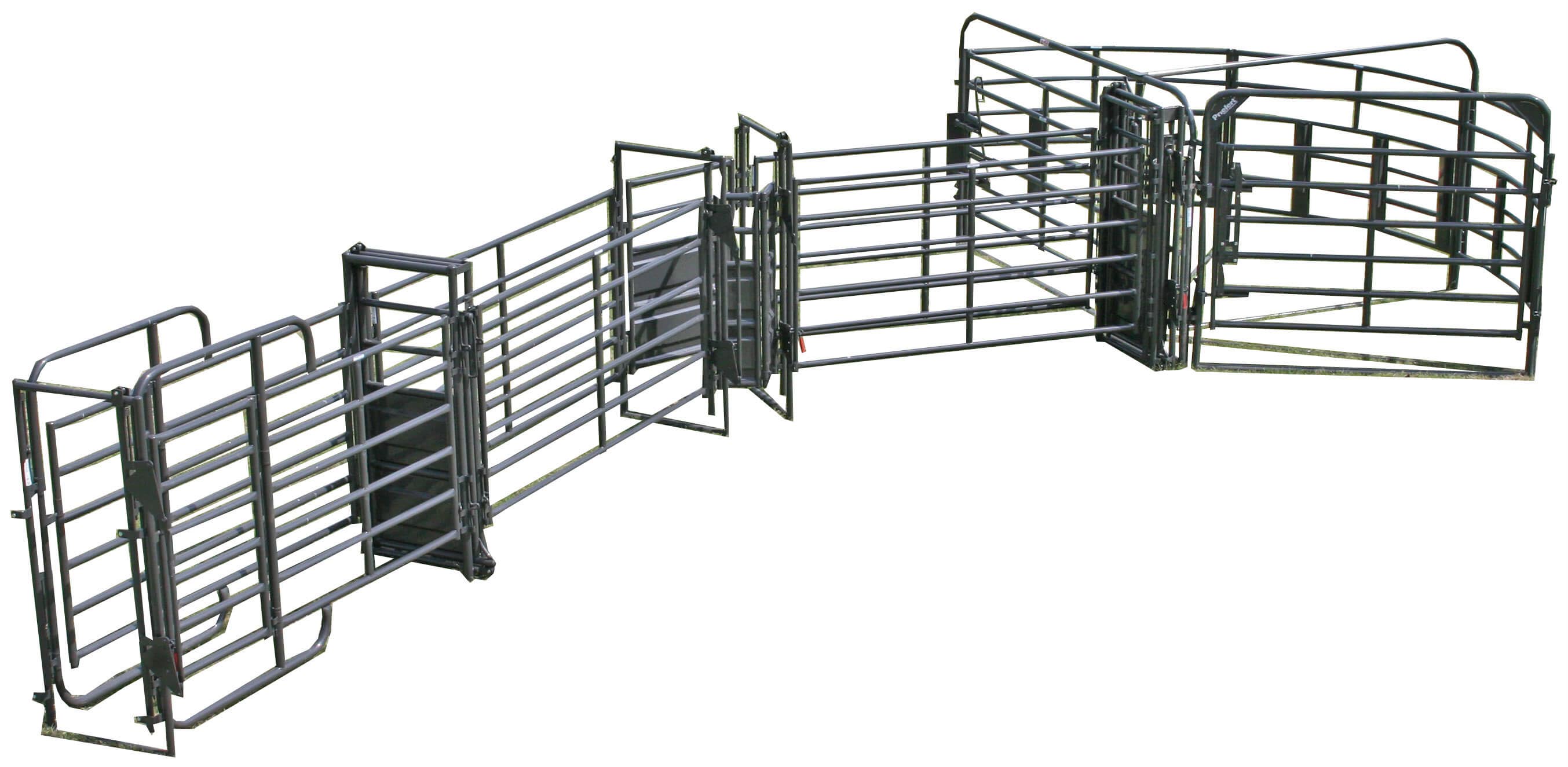

This heavy duty, completely reversible crowding system features a 135 degree sweep with a 32’ working alley. The alley includes a 45 degree turn kit, perfect for when your application calls for something other than a straight alley. Whether you plan to use this as part of a permanent installation or as a portable working corral, the RSOS-10 helps reduce the labor needed for working cattle. This system features an adjustable alley, two Rough Stock Open Preg Panels, blocking gates, and an 8’ sorting gate as part of the sweep. We also include an Adjustable Alley Frame with Chute Attachment to go at the end of the alley to make it quick and easy to attach a Priefert Squeeze Chute. The adjustable alley frames can be set to one of four widths to better fit the size of cattle being worked. The Preg Panels can be used to provide secure access for palpation or AI work, and can also double as sorting gates. The Adjustable Alley Gates not only lend support to the alley structure, but also serves as heavy duty roll gates for blocking cattle. The 8’ sorting gate gives you the option to sort or load out cattle straight from the sweep, without crowding them down the alley. This system is constructed from our heaviest, most durable panels, Priefert Rough Stock Panels, to ensure that it can handle even the rankest cattle. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.
- The RSOS-10 is great for permanent corrals, but versatile enough for portable applications if desired.
- By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.
- Our Rough Stock Open Curve Panels are specially designed to create our sweep tub and each includes three vertical blocking points that allow the sweep gate to latch. These stops help prevent cattle from pushing the sweep gate back when being crowded.
- This system is constructed from Priefert Rough Stock Panels, our heaviest, most durable panel. As the panel of choice for the NFR and the PBR, these panels are designed to handle the rankest cattle.
- Priefert’s SS45 turn kit is used to introduce a 45 degree turn into the alley.
- The Adjustable Alley Gates are designed to work with our Adjustable Alley Frames and serve as heavy duty roll gates for blocking cattle.
- The two Rough Stock Open Preg Panels situated at the end of the working alley make it easy for you to palpate or AI cattle. They can also double as sorting gates.
- Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
- 135 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
- The Rough Stock Open Bow Gate includes the sweeping gate, an alley frame that serves as the initial opening into the crowding alley, and a spring loaded Double Piston Lever Latch.
- The 8’ Rough Stock Open Sweep Bow Gate serves as a sorting gate, giving you the option to sort or load out cattle straight from the sweep, without crowding them down the alley.
- The 32’ long alley can easily be lengthened by purchasing additional panels and alley frames.
- Priefert’s unique Adjustable Alley Frames allow operators to quickly and easily adjust the width of the working alley to better fit the size of cattle being work. The alley can be set to 18”, 21”, 25”, or 28” wide.
- Radius Bars work at ground level to maintain the constant and correct radius for the sweep and the Radius Bow provides support from overhead.
- The Adjustable Alley Frame with Chute Attachment allows for quick and easy attachment of your adjustable alley to a Priefert Squeeze Chute (sold separately).
- Alley Length: 32’
- Bow Gate Frame Height: 7’ (approximate height)
- Inside Alley Width: Adjustable to 18”, 21”, 25”, or 28”
- Architectural Grade Powder Coat Finish
- Alley Frame Inside Height: 80”
- Panel Height: 6’

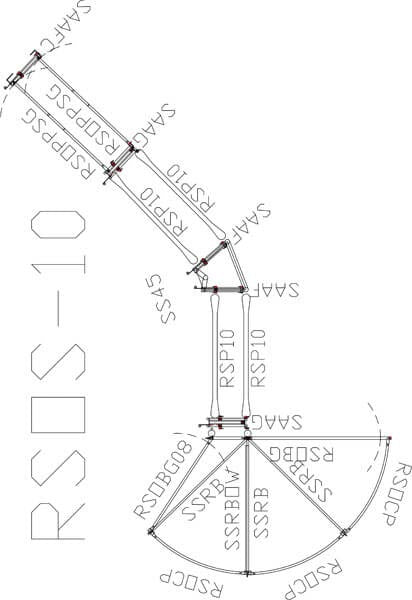

- RSOS-10 includes: 1- Open Bow Gate, 3- Open Curve Panels, 3- Radius Bars, 1- Radius Bow, 4- 10’ Rough Stock Panels, 2- Rough Stock Open Preg Panels, 1-SS45 Turn Kit (contains base, sheeted panel, and folding panel), 2- Adjustable Alley Gates, 2- Adjustable Alley Frame, 1- Adjustable Alley Frame with Chute Attachment, 2- Connector Posts, 1- 8’ Rough Stop Open Sweep Bow Gate
- Color: Grey
