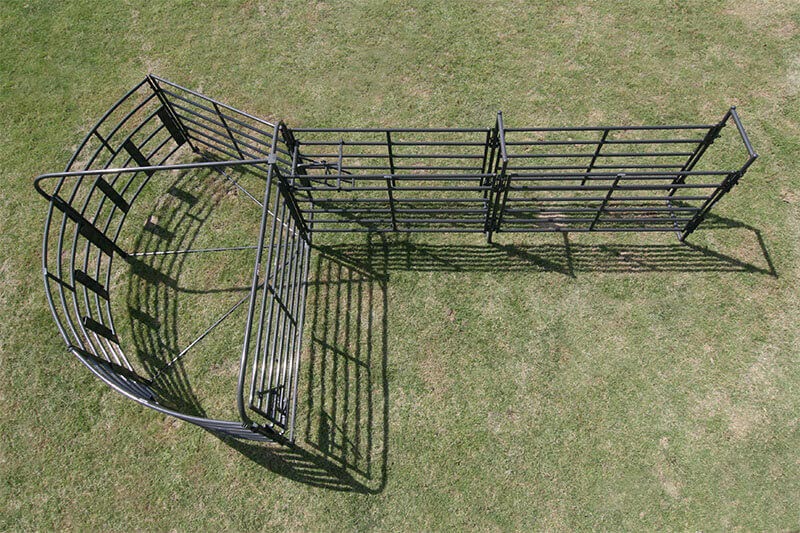

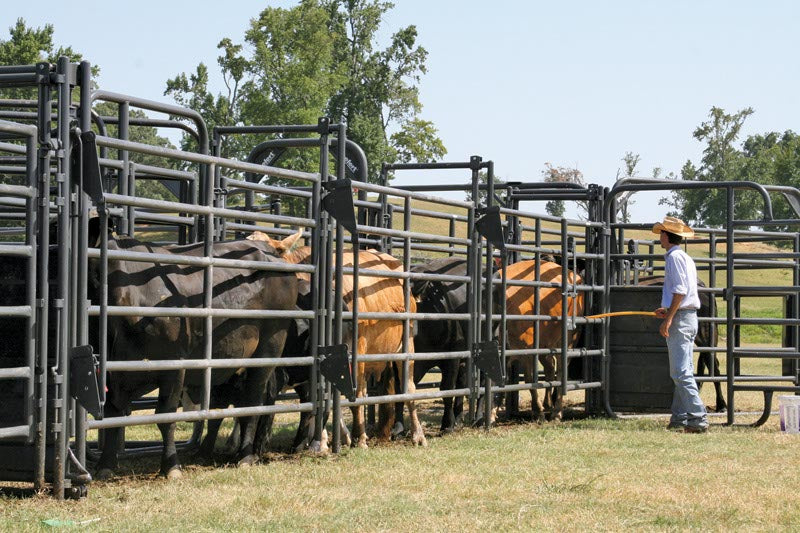

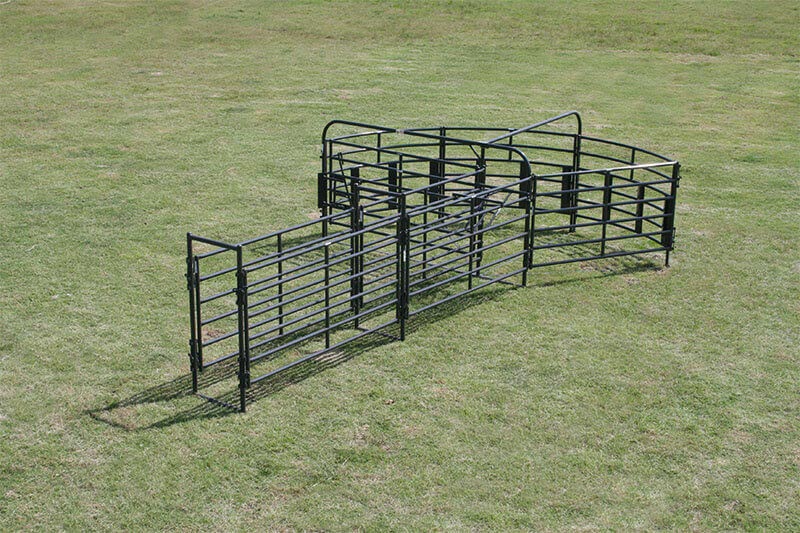

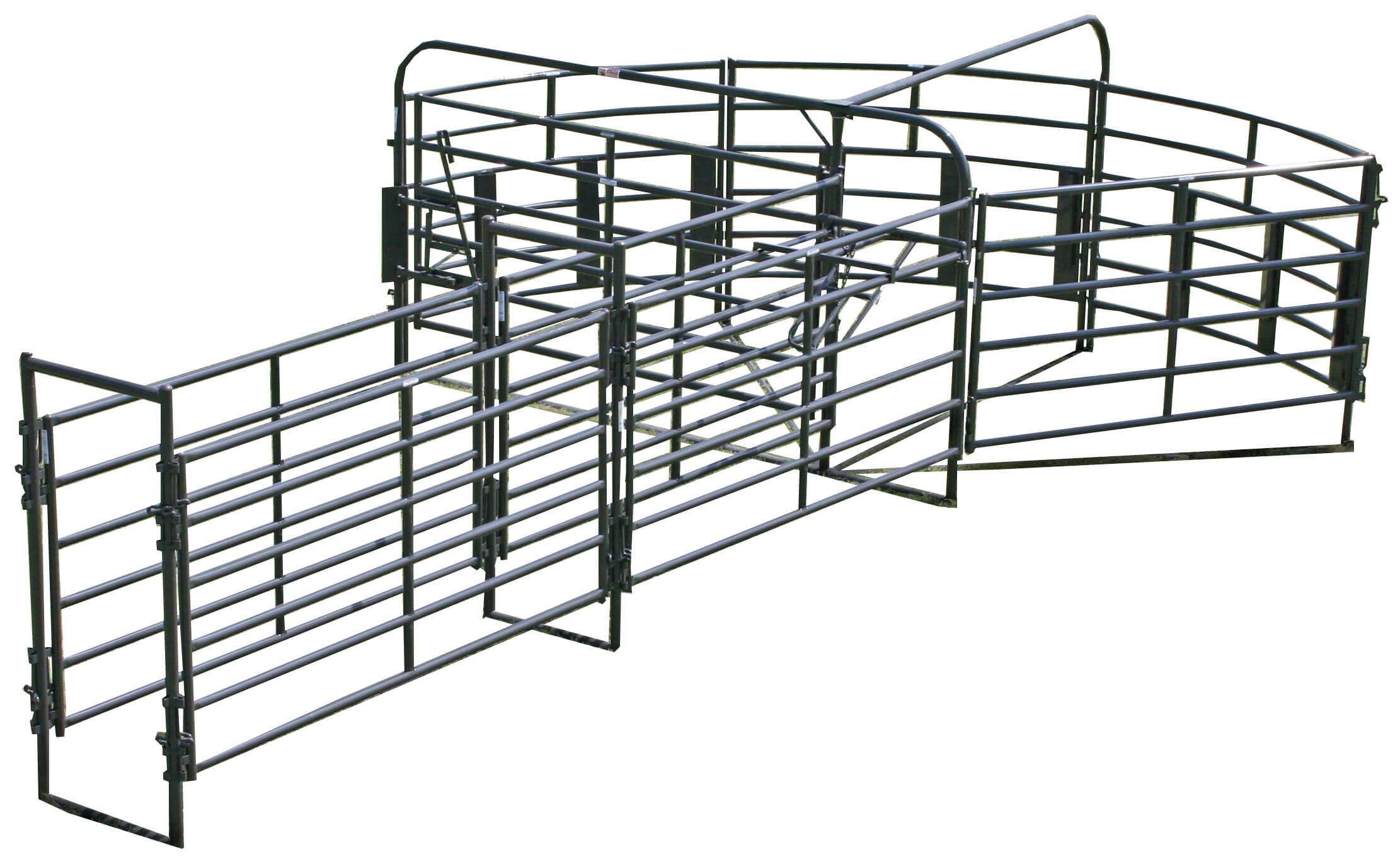

This heavy duty, completely reversible crowding system includes a 135 degree sweep with a 20’ working alley. Whether you plan to use this as part of a permanent installation or as a portable working corral, the RSOS-4 helps reduce the labor needed for working cattle. This system includes a “no-back” alley stop. With no tools, the “no-back” Alley Stop can be easily adjusted to prevent cattle from backing out of the alley. This system is constructed from our heaviest, most durable panels, Priefert Rough Stock Panels, to ensure that it can handle even the rankest cattle. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.
- The RSOS-4 is great for permanent corrals, but versatile enough for portable applications if desired.
- By pivoting our 10’ wide sweeping bow gate at the inside corner of the alley entrance, livestock flow is improved by eliminating corners that are found in other sweep systems.

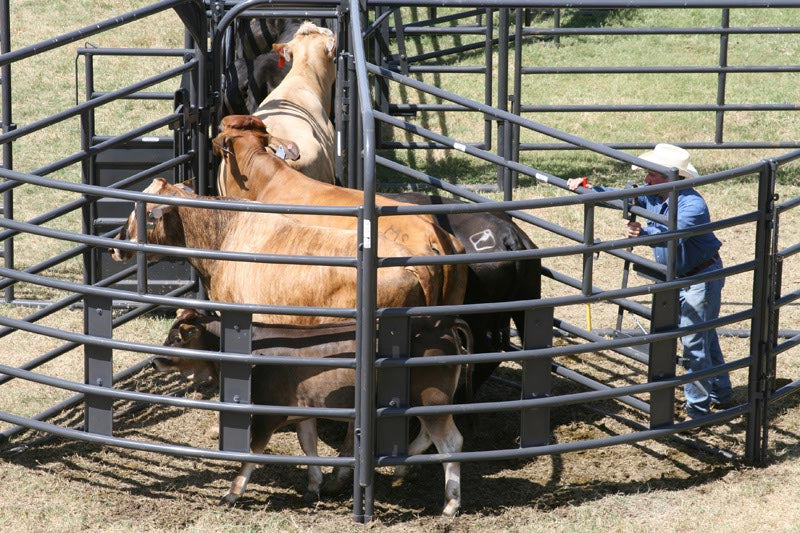

- Our Rough Stock Open Curve Panels are specially designed to create our sweep tub and each includes three vertical blocking points that allow the sweep gate to latch. These stops help prevent cattle from pushing the sweep gate back when being crowded.
- The 20’ long alley can easily be lengthened by purchasing additional panels and alley frames.
- Radius Bars work at ground level to maintain the constant and correct radius for the sweep and the Radius Bow provides support from overhead.
- Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
- 135 degree sweep is easily reversible so that cattle can be loaded from either side of the working alley, and can be expanded into a complete corral system with the purchase of additional pieces.
- The Rough Stock Open Bow Gate includes the sweeping gate, an alley frame that serves as the initial opening into the crowding alley, and a spring loaded Double Piston Lever Latch.
- This system is constructed from Priefert Rough Stock Panels, our heaviest, most durable panel. As the panel of choice for the NFR and the PBR, these panels are designed to handle the rankest cattle.
- Alley Frames help maintain the strength and support of the 29” wide alley.
- With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
- Alley Length: 20’
- Bow Gate Frame Height: 7’ (approximate height)
- Inside Alley Width: 29”
- Architectural Grade Powder Coat Finish
- Alley Frame Inside Height: 78”
- Panel Height: 6’
- RSOS-4 includes: 1- Open Bow Gate, 3- Open Curve Panels, 3- Radius Bars, 1- Radius Bow, 1- Open Straight Sweep Panel, 4- 10’ Rough Stock Panels, 2- Alley Frames, 1- “no-back” Alley Stop
- Color: Grey
