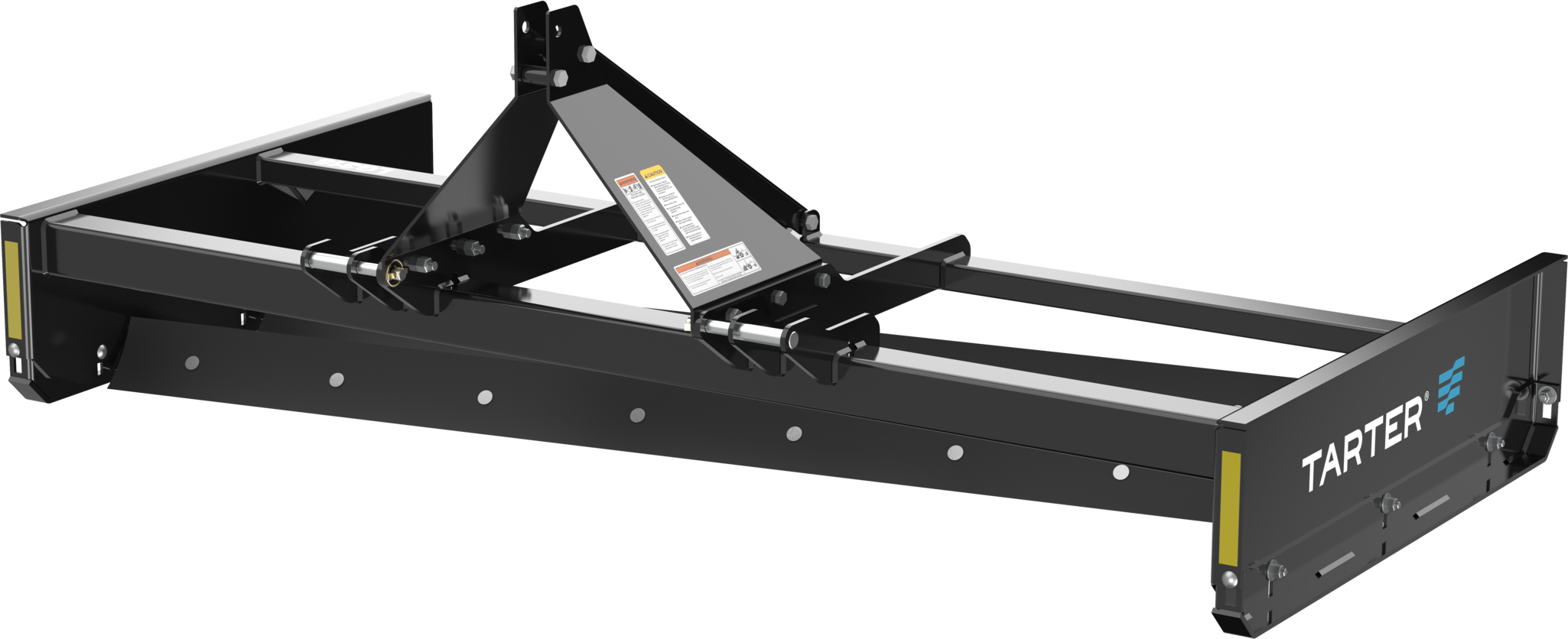

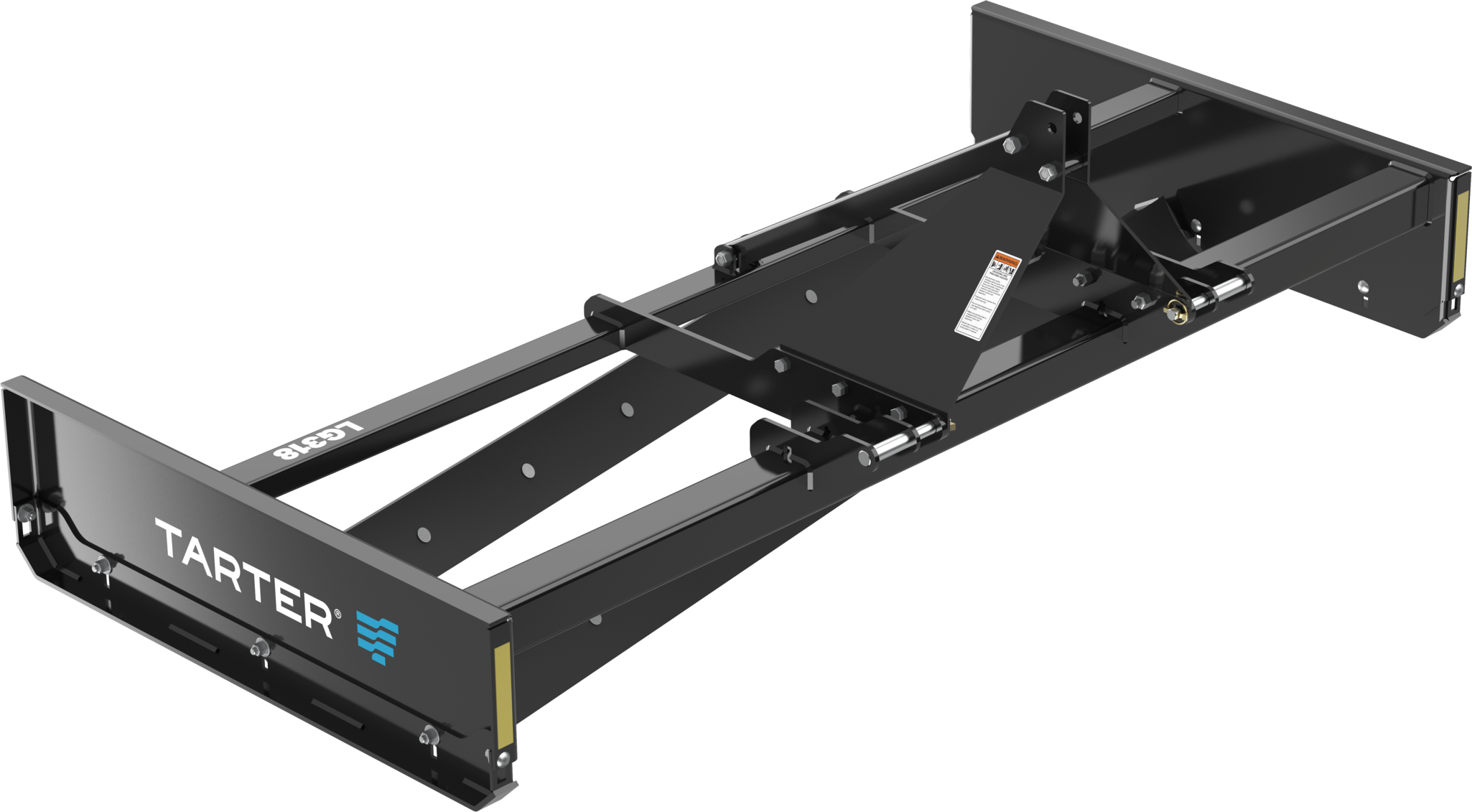

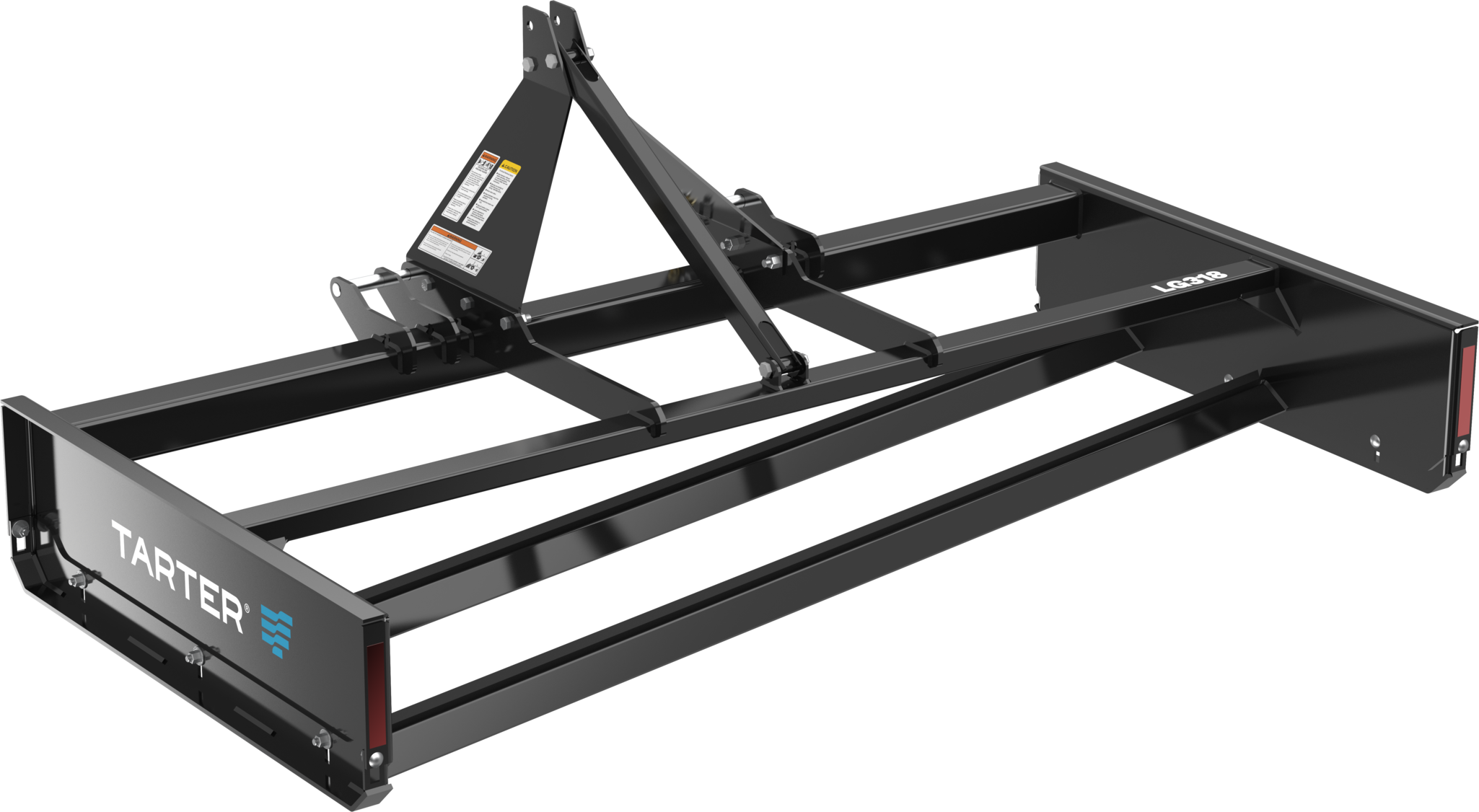

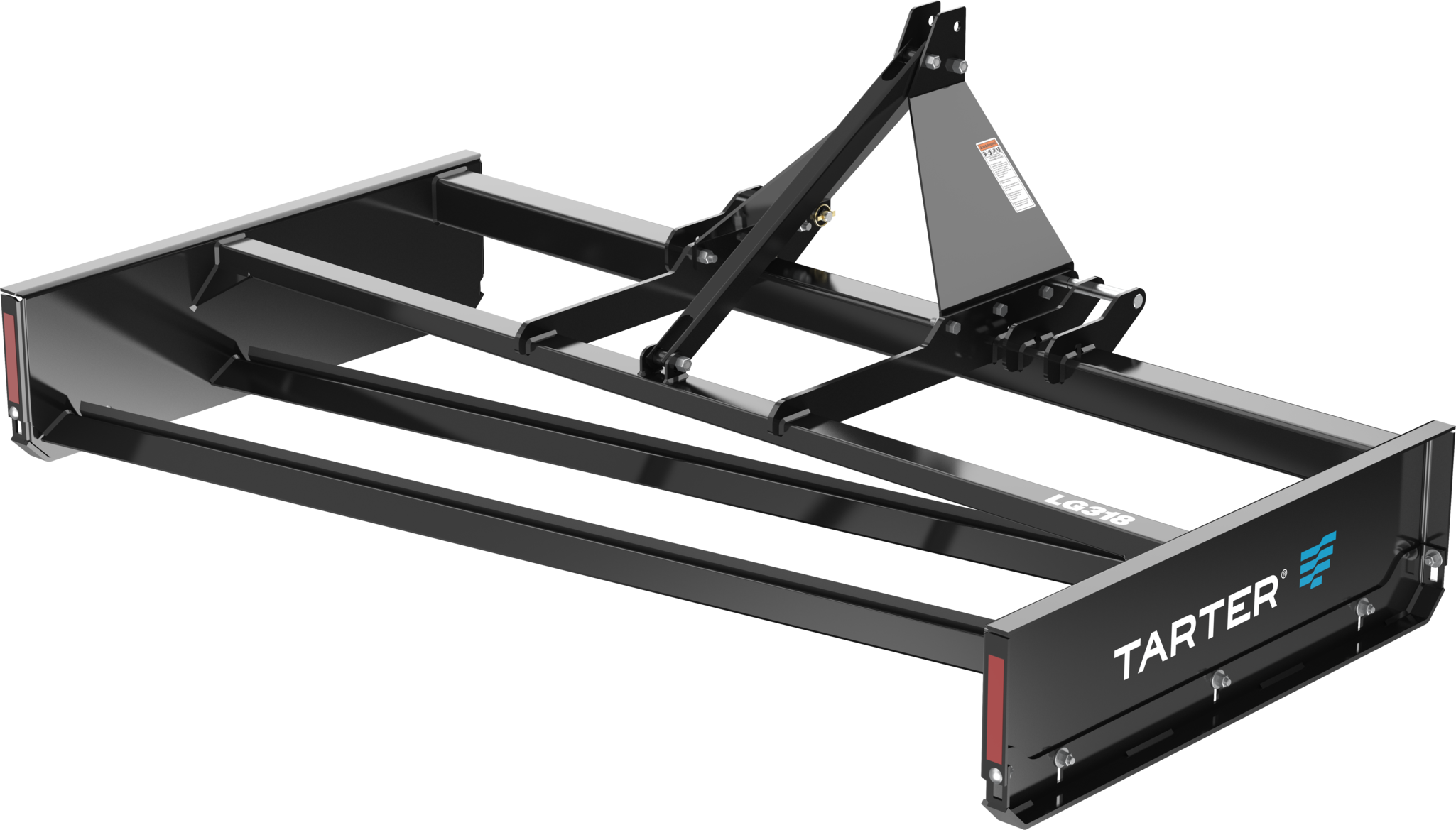

Tarter’s 8′ Land Grader is designed with two parallel grading blades positioned at a 10 degree angle. Both 0.375″x6″ high carbon heat-treated blades are reversible and replaceable. It features adjustable skid shoes and boasts a heavier frame construction than previous models.

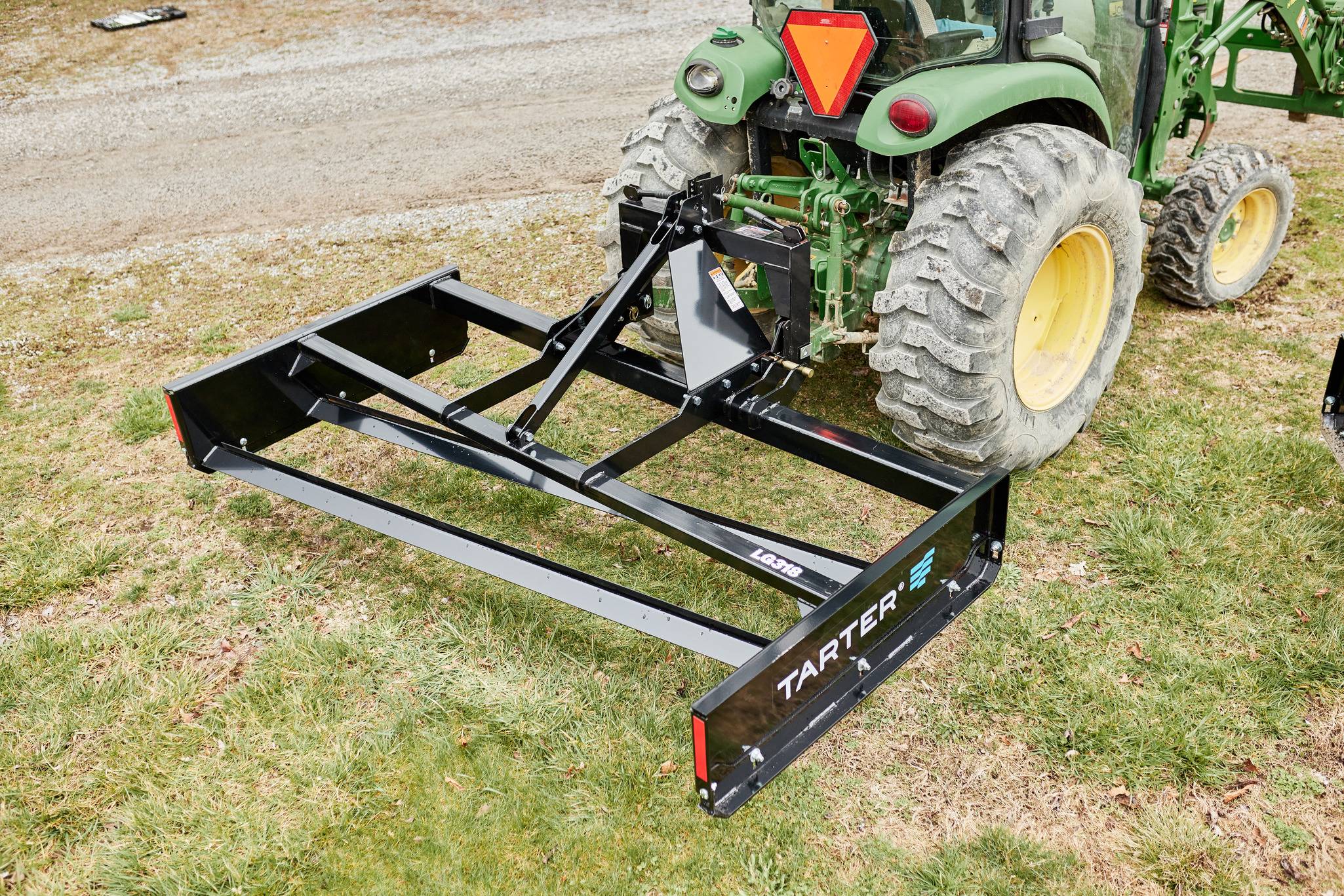

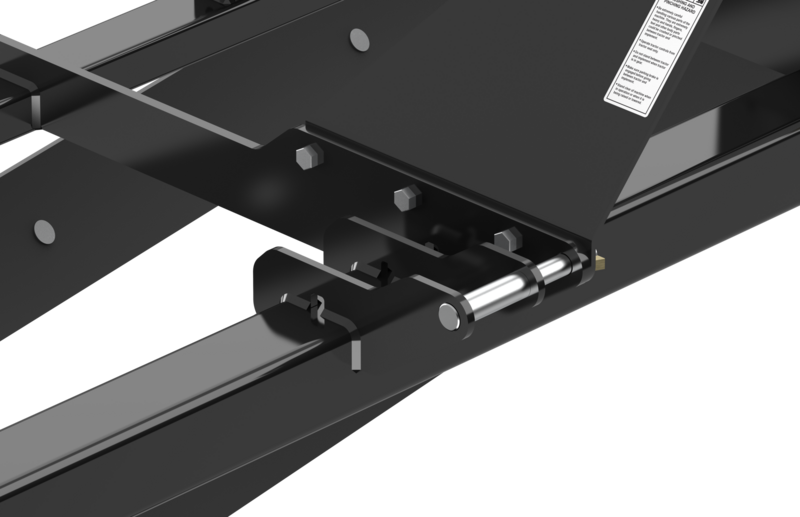

This land grader has Cat 1 & 2 clevis style pins and is also quick hitch compatible. Ideally suited to tractors 40-90 HP.
Tractor Horsepower
40-90
Hitch Type
Cat 1 & 2
Working Width
96 in.
Cutting Edges
2
Part
LG318BL
Length
54 in.
Width
100 in.
Approx. Weight
582 lbs
Height
35 in.
Quick Hitch Compatible
Yes
Warranty
1 Year
Height to Hitch Pins
16 in.
Side Panel Length
50 in.
Side Panel Height
14.5 in.
Side Panel Thickness
.25 in. with Formed Edges

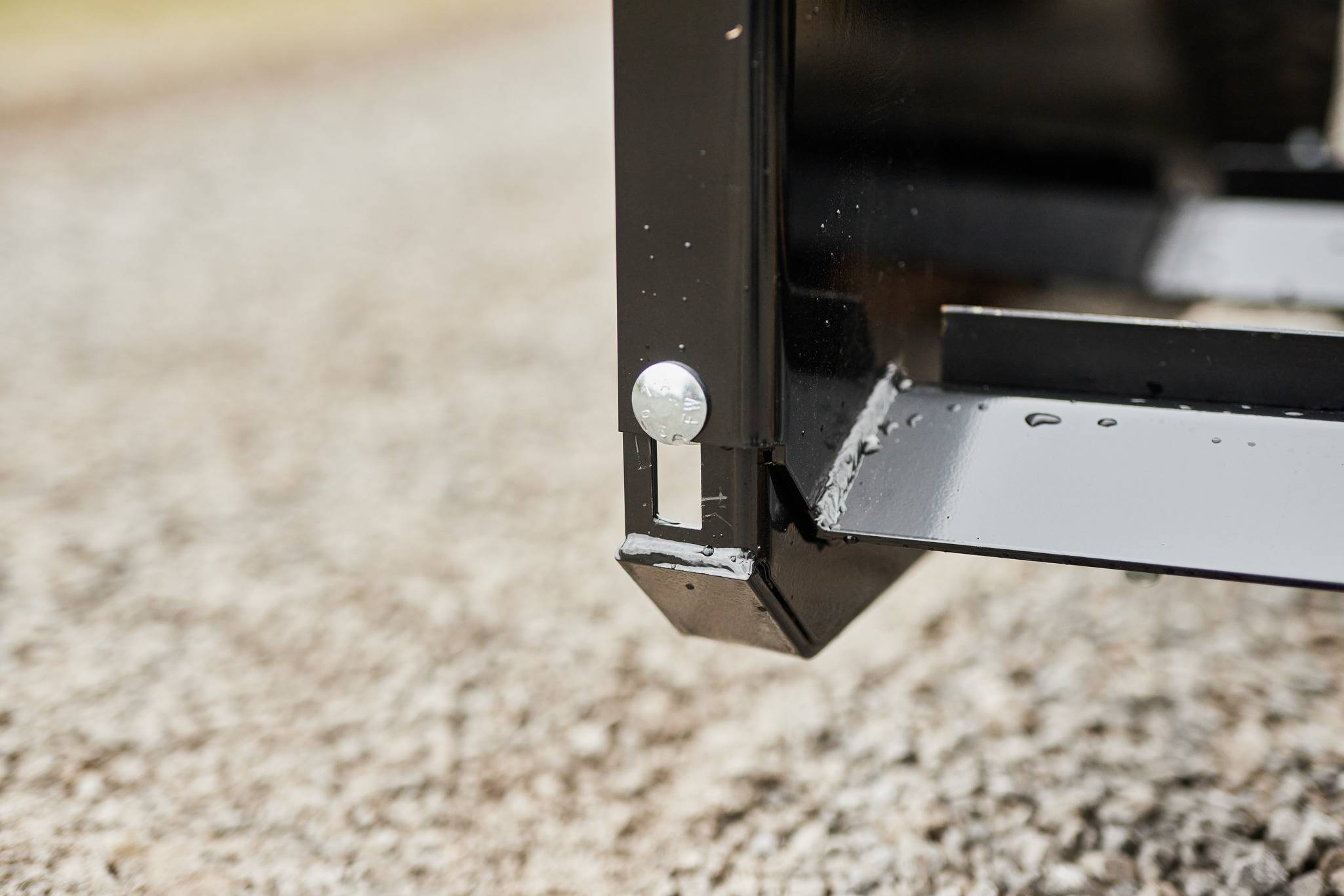

Adjustable Skid Shoe Thickness
.375 in.
Main (Front) Beam
4 in. x 4 in. x .25 in. Tubing
Cutting Edge Features
Reversible and Replaceable, .375 in. x 6 in. High Carbon Heat Treated Blades
Cutting Edge Placement
Two Parallel Grading Blades Positioned at 10 Degree Angle

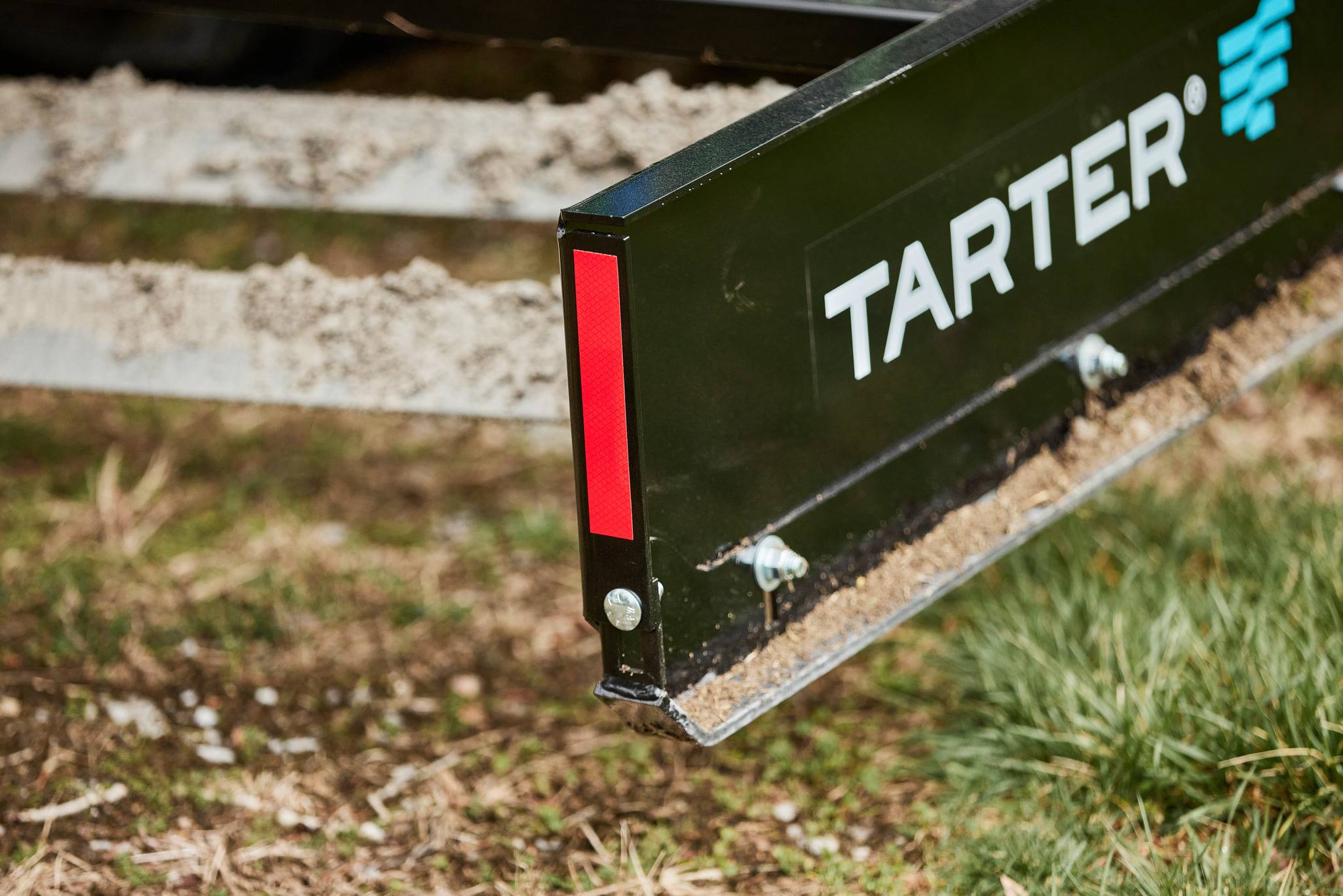

Skid Shoe Adjustment
Infinitely Adjustable Blade Depth from 0 to 1.5 in. via Skid Shoes

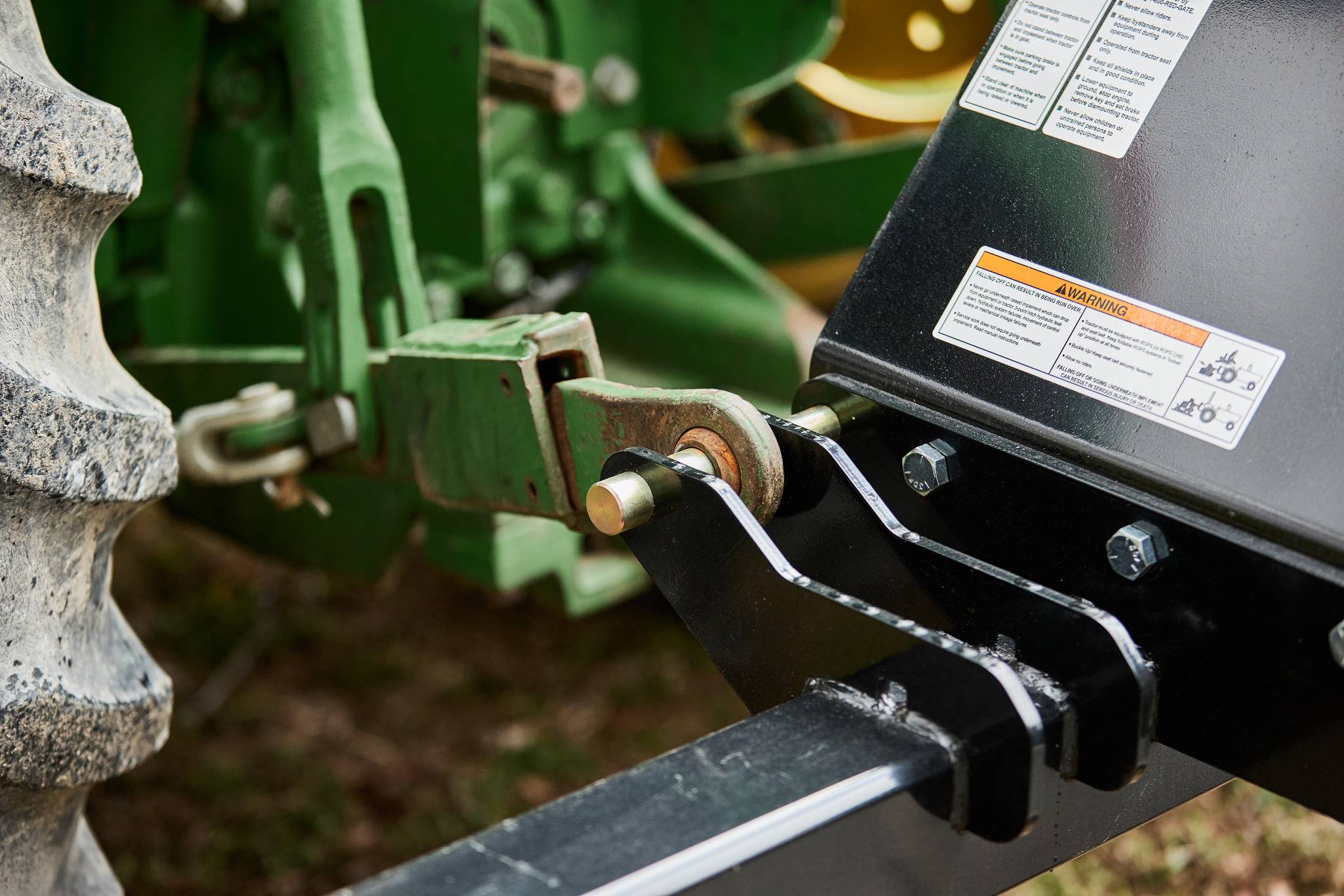

Hitch Style
Clevis with Pin
