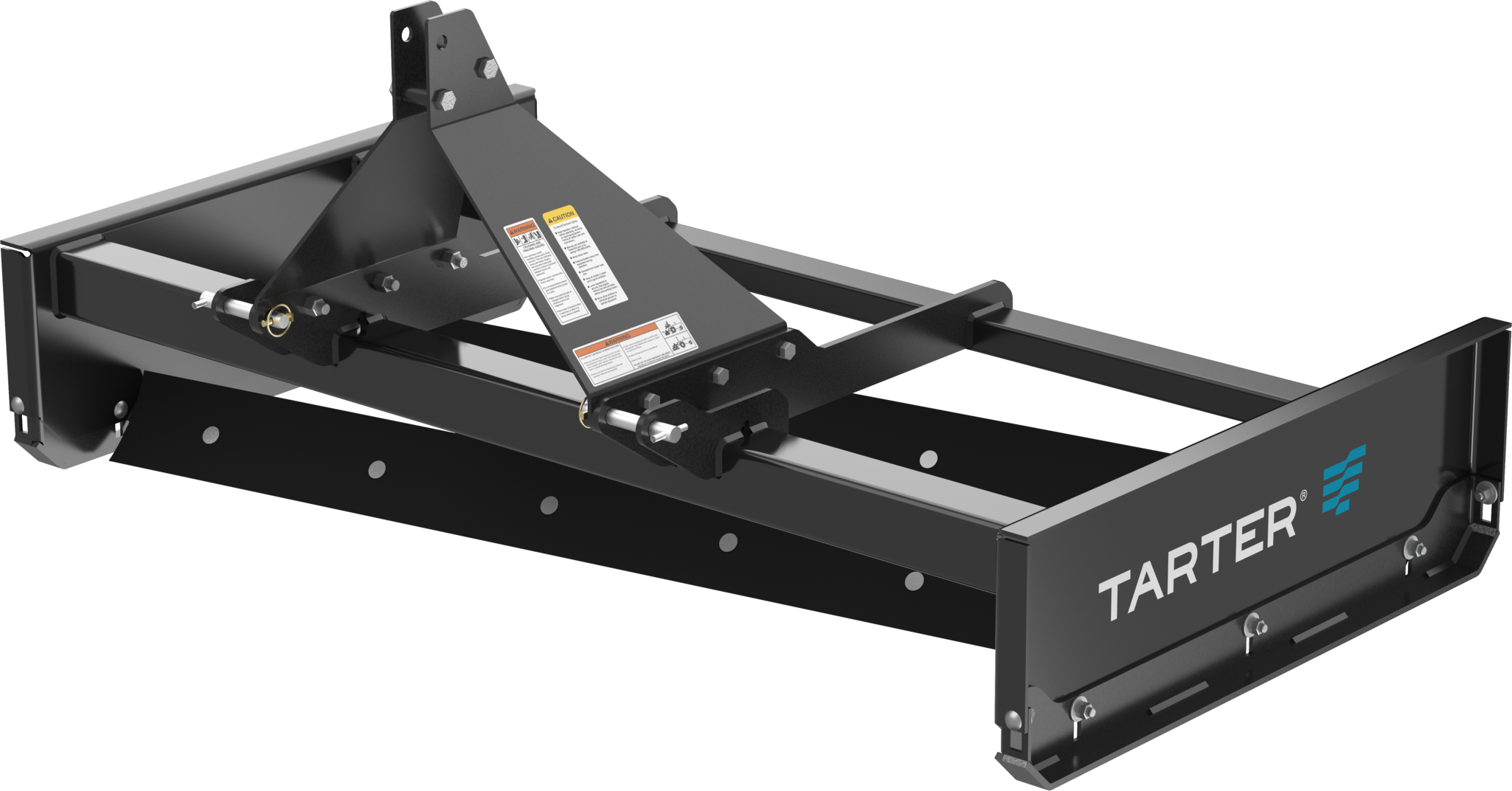

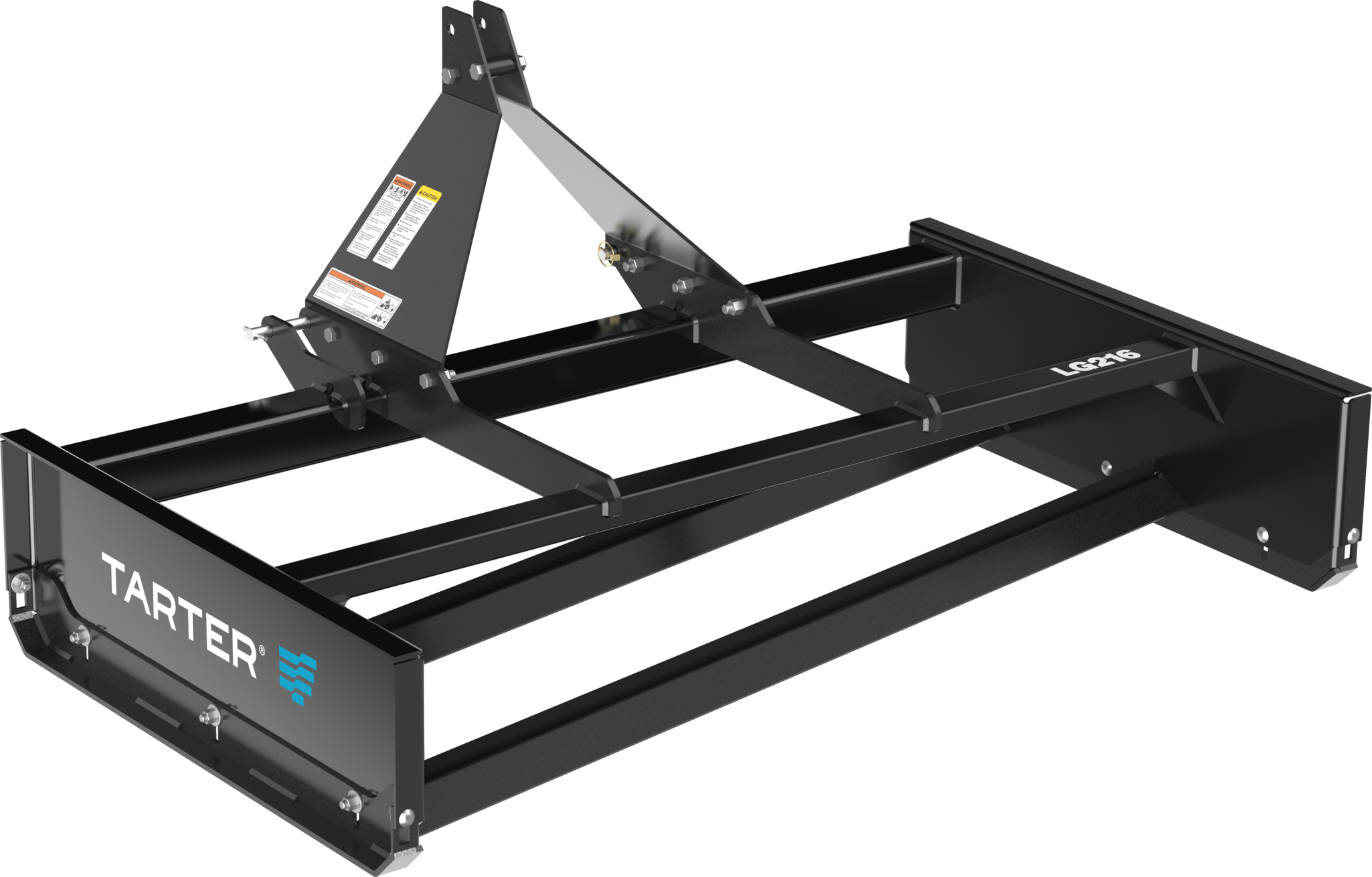

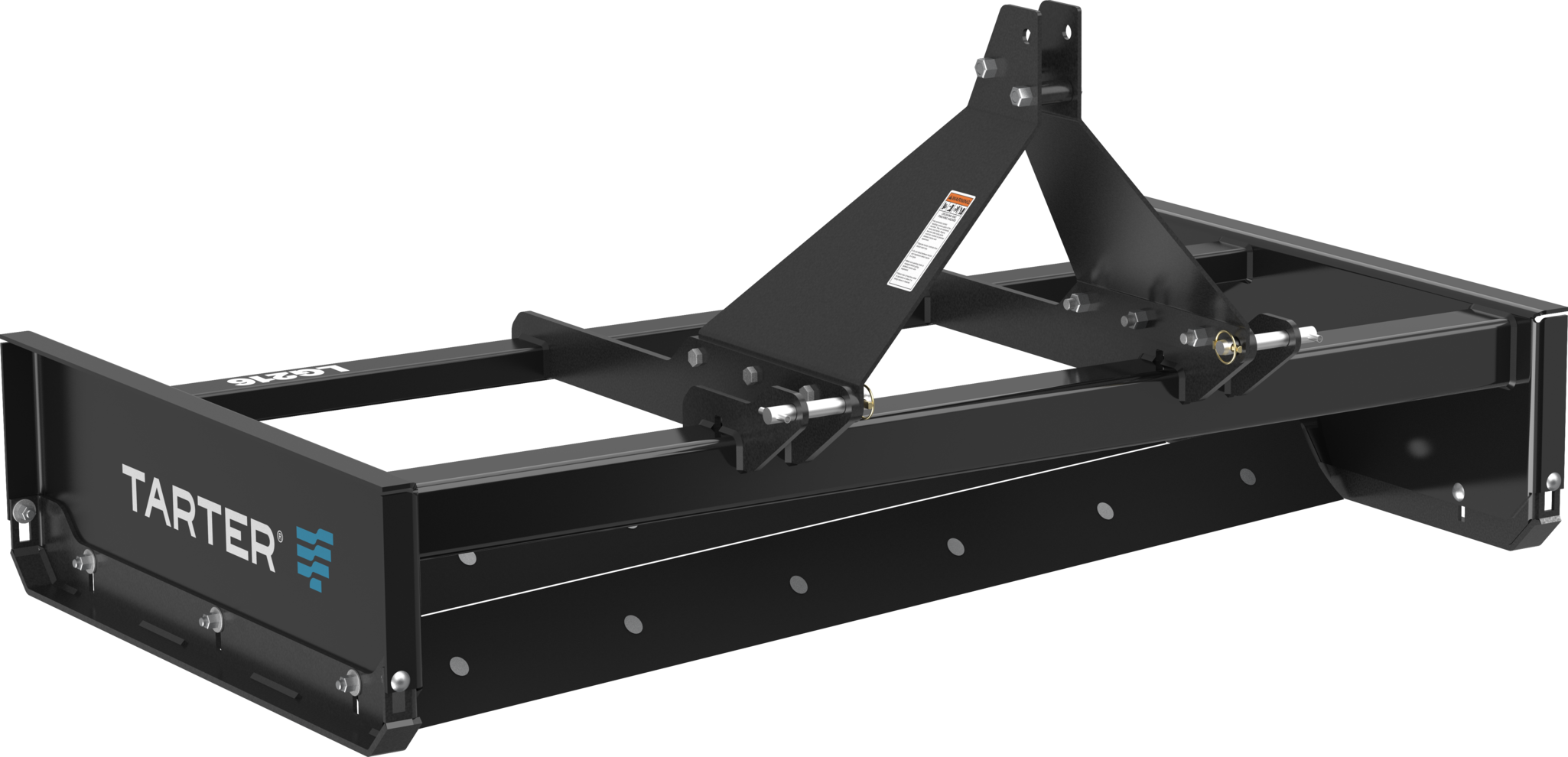

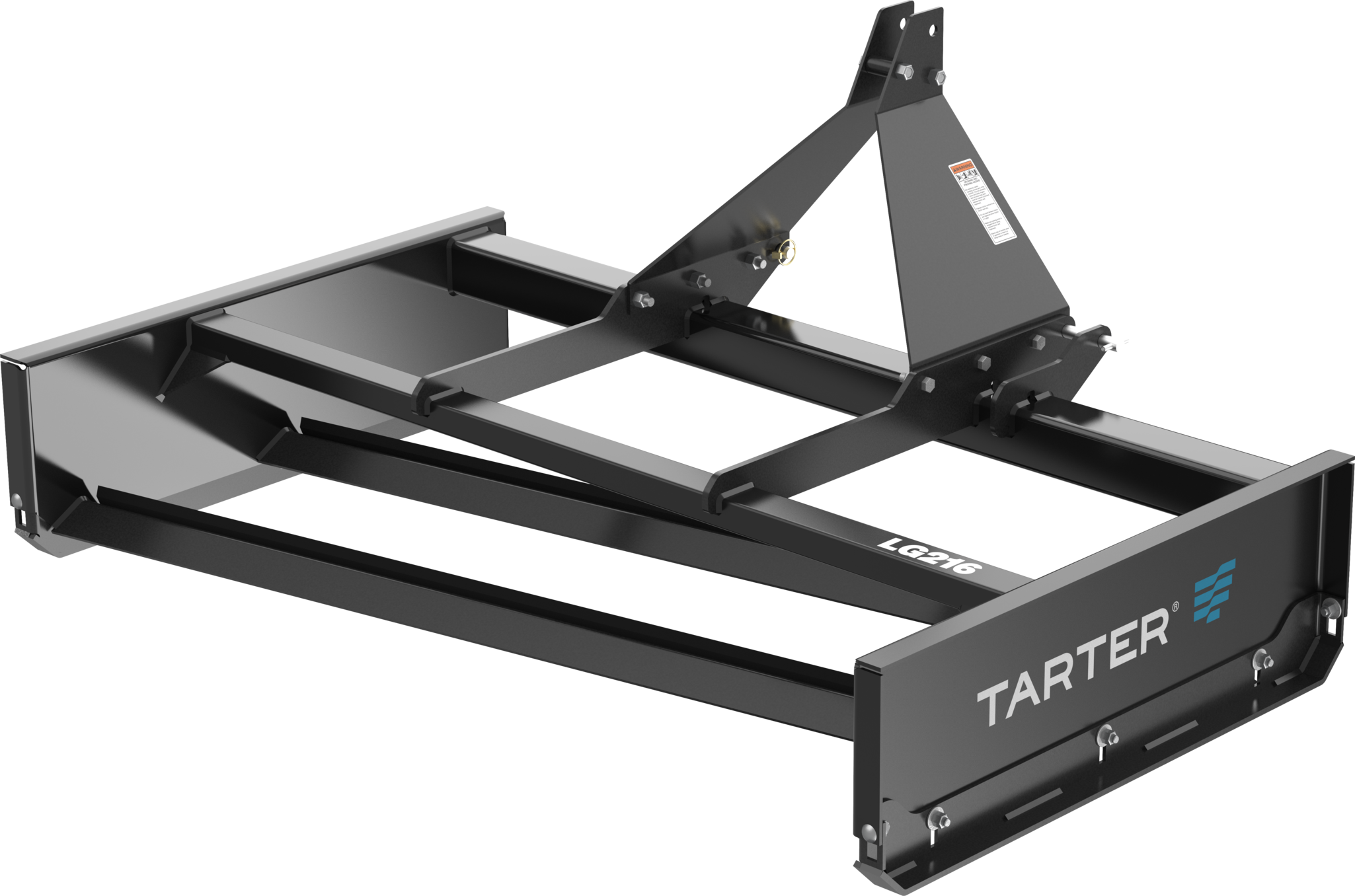

Tarter’s 6 ft. Land Grader is designed with two parallel grading blades positioned at a 10 degree angle. Both 0.375″x6″ high carbon heat-treated blades are reversible and replaceable. It features adjustable skid shoes and boasts a heavier frame construction than previous models.
This 6 ft. land grader is Cat 1 and quick hitch compatible and ideally suited to tractors 30-55 HP.
Also available as a 5 ft. model.
Tractor Horsepower
35-50
Hitch Type
Cat 1
Working Width
72 in.
Cutting Edges
2
Part
LG216BL
Length
48 in.
Width
76 in.
Approx. Weight
465 lbs
Height
35 in.
Quick Hitch Compatible
Yes
Warranty
1 Year
Height to Hitch Pins
16 in.
Side Panel Length
44 in.
Side Panel Height
14.5 in.
Side Panel Thickness
.25 in. with Formed Edges
Adjustable Skid Shoe Thickness
.375 in.
Main (Front) Beam
4 in. x 4 in. x .25 in. Tubing
Cutting Edge Features
Reversible and Replaceable, .375 in. x 6 in. High Carbon Heat Treated Blades
Cutting Edge Placement
Two Parallel Grading Blades Positioned at 10 Degree Angle
Skid Shoe Adjustment

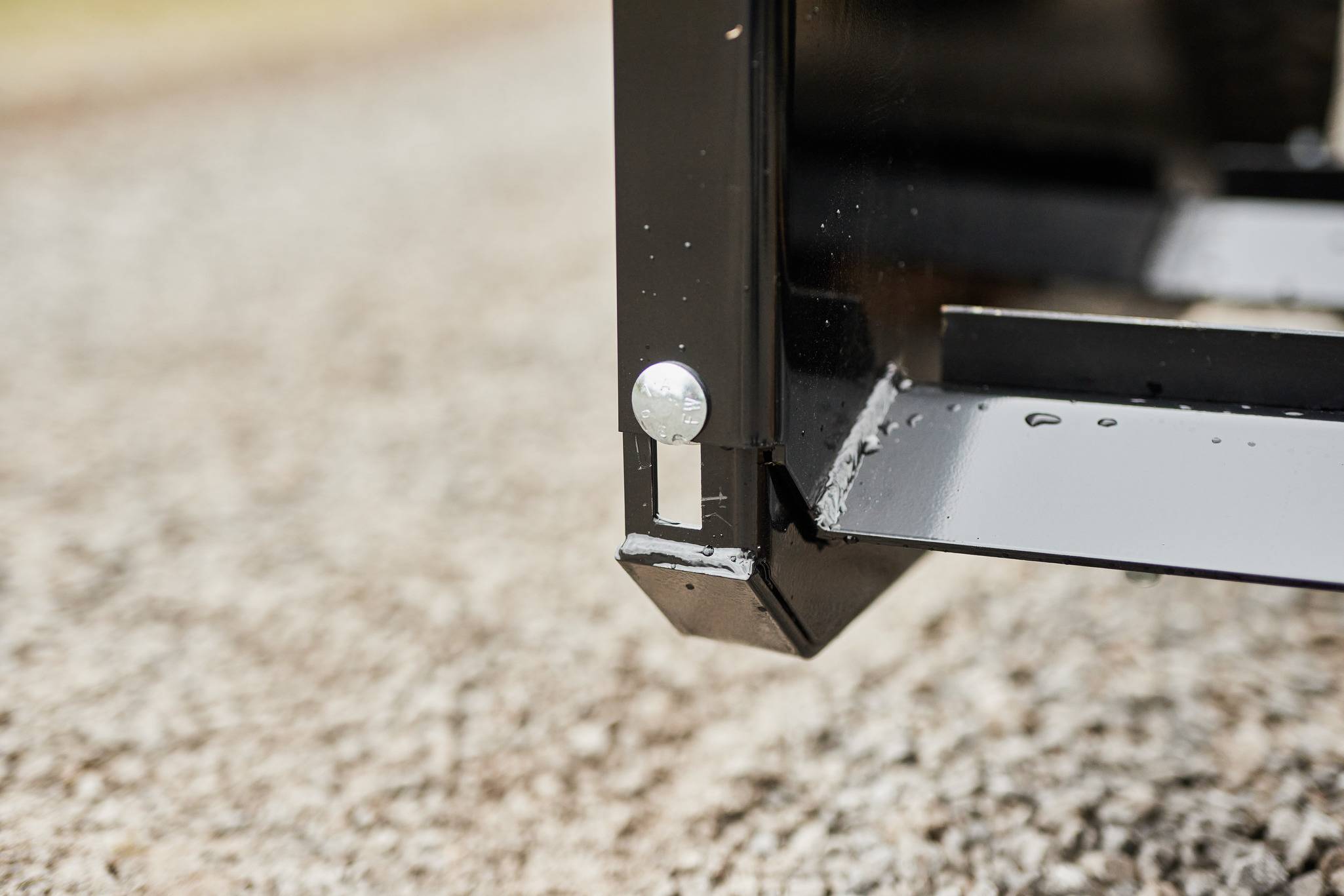

Infinitely Adjustable Blade Depth from 0 to 1.5 in. via Skid Shoes

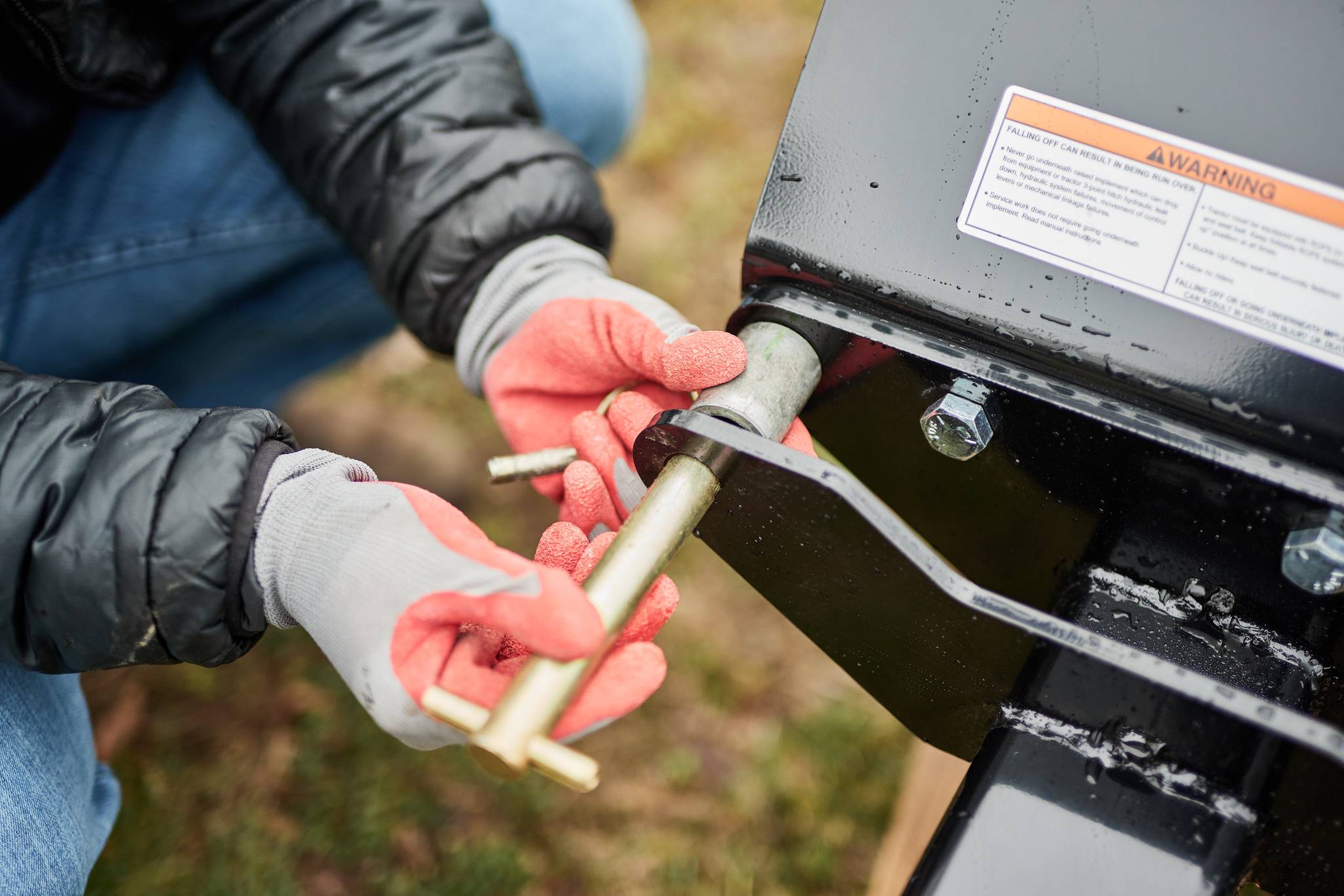

Hitch Style
Clevis with Pin
