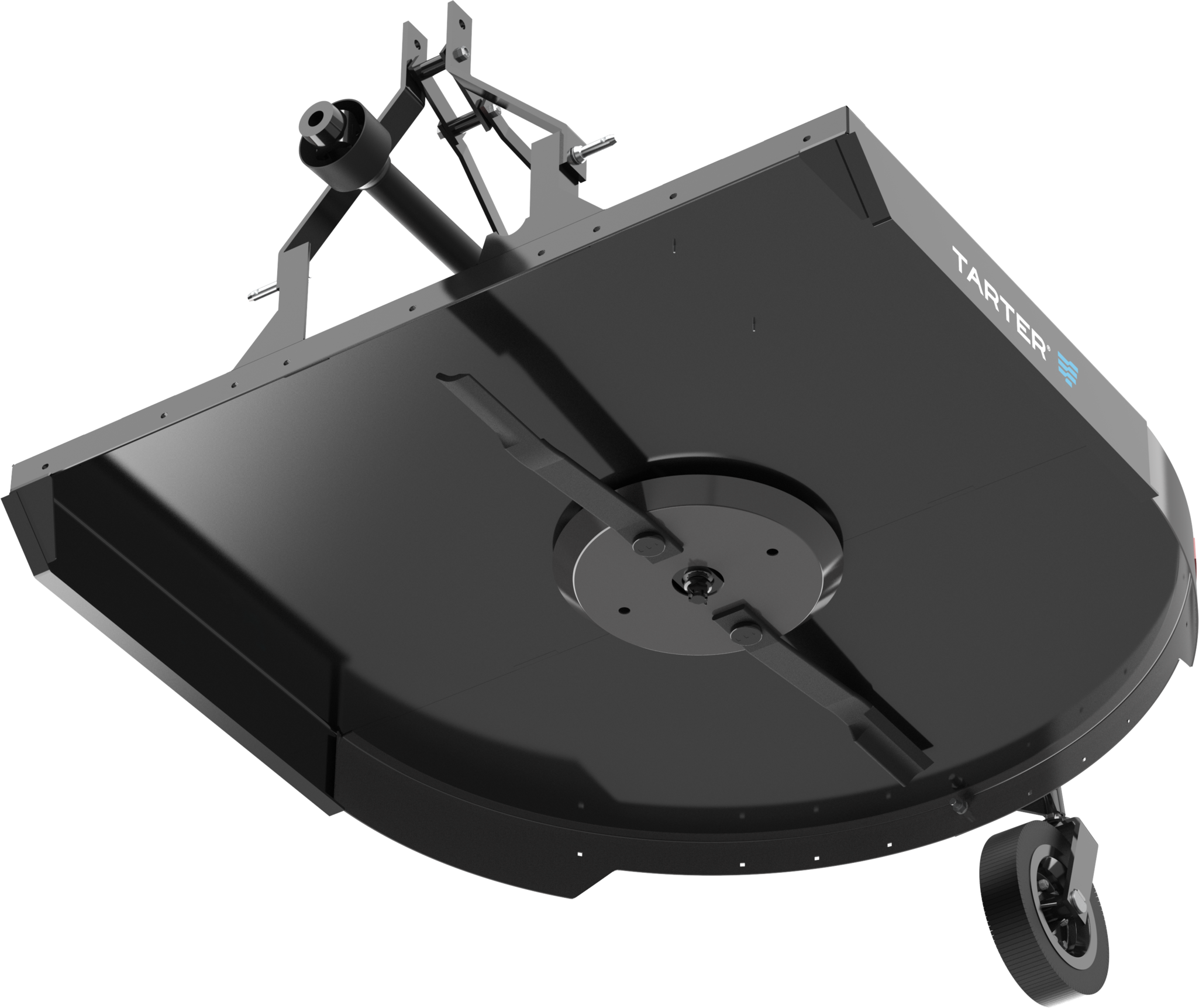

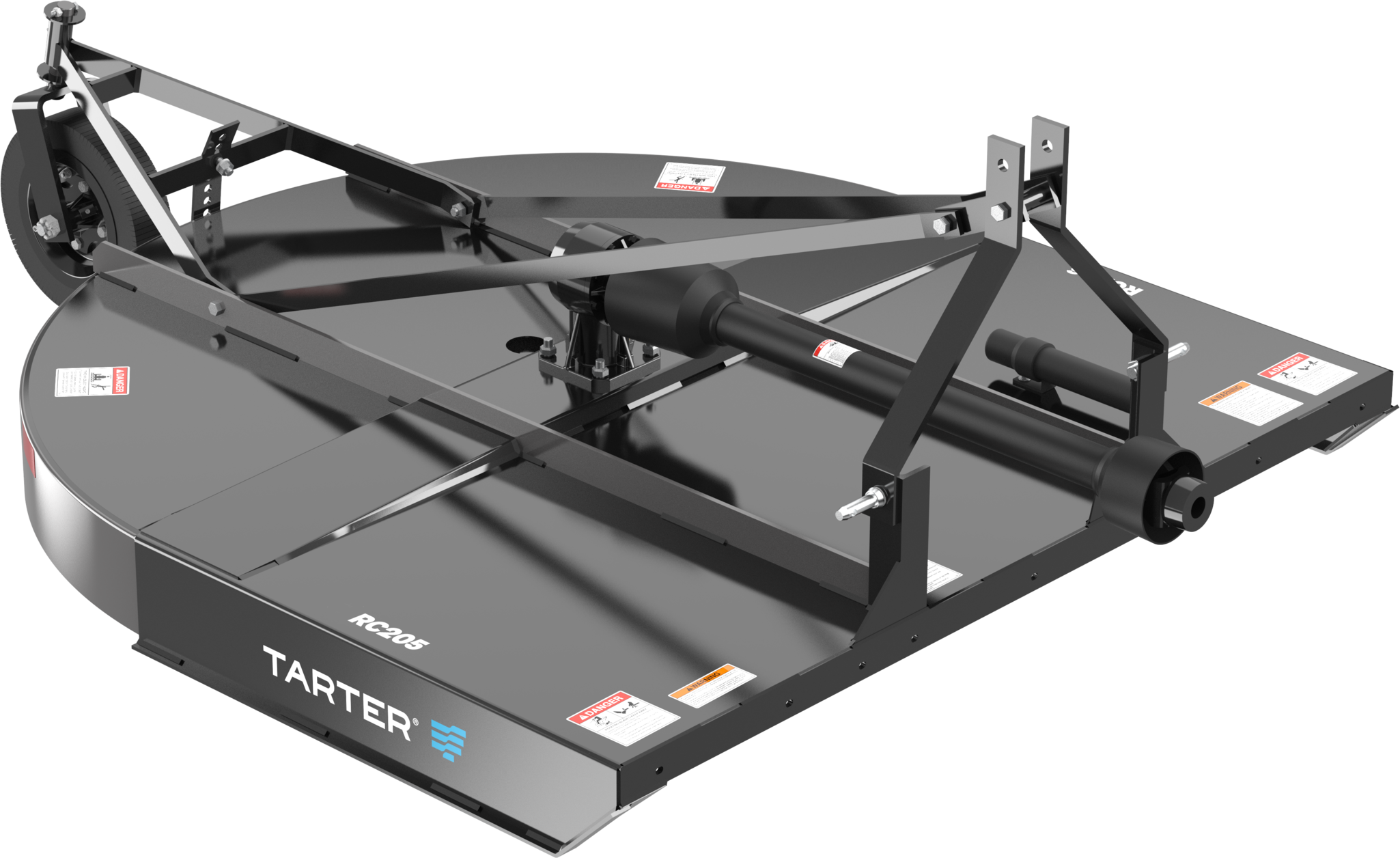

The 200 Series Rotary Cutter is the perfect solution for mowing backfields, creating riding and walking trails, and clearing paths for wildlife management. Cut grass, stalks, and light brush up to 1″ thick with ease. The thick 12GA deck is 7.5″ deep.
By adjusting the laminated tailwheel height your length of cut can range from 1.5 – 9″. The durable heat-treated blades pivot on the 1/8″ thick steel stump jumper to protect the cutter from unseen obstacles, avoiding damage to the gearbox and blades.
The 45 HP cast iron gearbox contains forged steel gears and features shear bolt protection for the driveline.
This rotary cutter is quick hitch compatible and ideally suited to tractors 20-50 HP. Optional rubber front and metal rear guards available.
Tractor Horsepower
20-50
Power Take-Off Speed
540
Hitch Type
Cat 1
Cutting Width
60 in.
Cutting Height
1.5-9 in.
Deck Height
7.5 in.
Driveline
ASAE Cat 4 Shear Bolt Protection
Driveline Protection Options
Shear Bolt
Top Gearbox Construction
45 hp cast iron housing, precision forged steel gears
Top Gearbox Lubrication
EP 80-90W gear oil
Gearbox Lubrication Capacity
23 ounces
Cutting Capacity
up to 1 in.
Deck Material Thickness
12 Ga.
Stump Jumper
1/8 in. Thick, Round 22.3 in. pan-type
Blades
0.5 in. x3 in. Heat Treated Free Swinging w/ Suction Lift.
Blade Tip Speed
12,478 ft./min.
Tailwheel
15 in. Laminated Tire
Safety Guards
Optional Rubber Front/ Metal Rear
Blade Bolt Size
42mm socket
Shear Bolt
0.5 in. x 3.5 in. Grd 2 Hex Bolt
Castle Nut on Gearbox
38mm socket
Part
RC205BL
Length
86 in.
Width
64 in.
Approx. Weight
530 lbs
Color
BLACK
Quick Hitch Compatible
Yes
Warranty
1 Year
